VOX Fronto Bottom Ventilation Trim (M) for Vertical Installation 3.05m

VOX Fronto Bottom Ventilation Trim (M) for Vertical Installation 3.05m

The VOX Fronto Bottom Ventilation Trim (M) for Vertical Installation is specifically designed for use at the base of vertically installed VOX Fronto cladding systems. It creates the necessary airflow beneath the cladding while providing a clean, professional finish to the bottom edge of the façade. Manufactured from durable PVC, this trim is engineered to withstand external conditions while supporting the long-term performance of the ventilation cavity.

Unlike horizontal installations, vertically installed VOX Fronto panels require intersecting battens to maintain continuous airflow behind the cladding. This creates a deeper batten construction, making the correct bottom ventilation trim an essential component of the installation system.

Designed for Vertical Fronto Installations

This Bottom Ventilation Trim (M) has been developed specifically for vertical VOX Fronto panel layouts. Installed along the bottom of the cladding system, it allows fresh air to enter the ventilation cavity while maintaining a neat and consistent appearance across the installation.

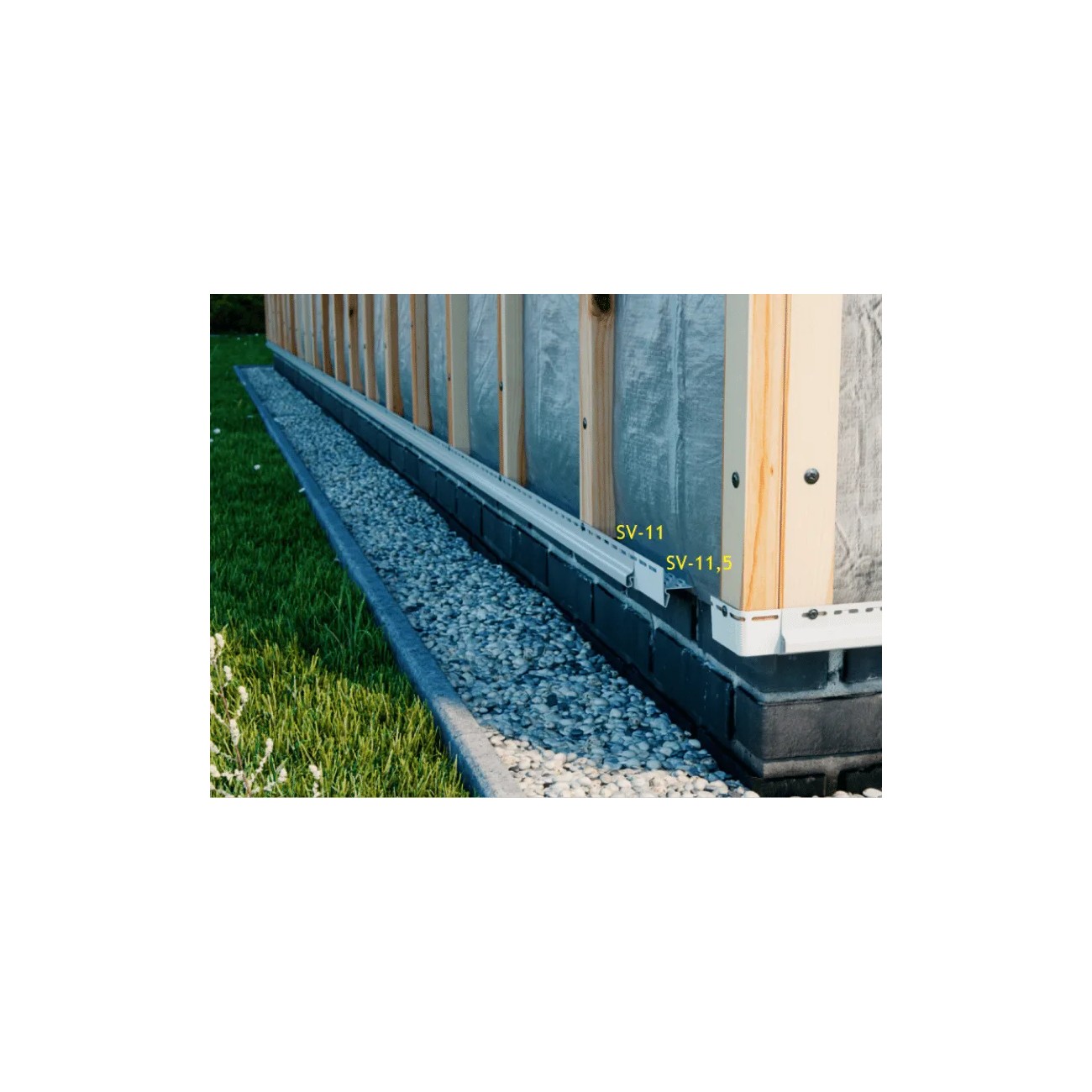

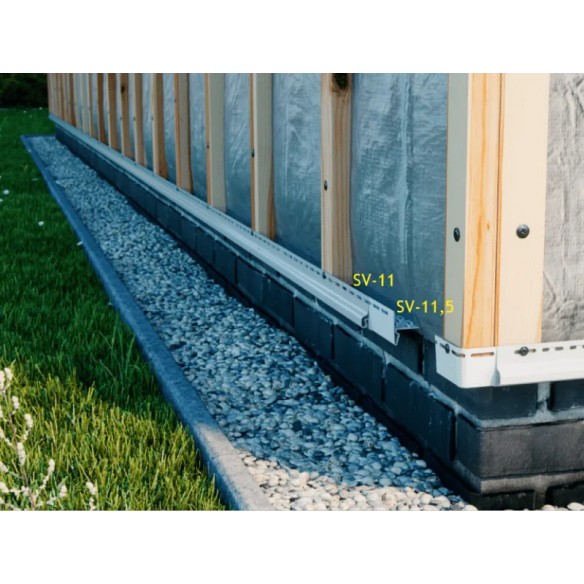

Please note that the product image shown is for illustration purposes only. Although it displays a horizontal installation, the trim position shown is correct for vertical installations.

Durable PVC Construction

Manufactured from high-quality PVC, the trim offers excellent resistance to weathering, moisture and everyday outdoor exposure. Its robust construction helps maintain ventilation performance while requiring very little maintenance throughout its service life.

Easy Installation

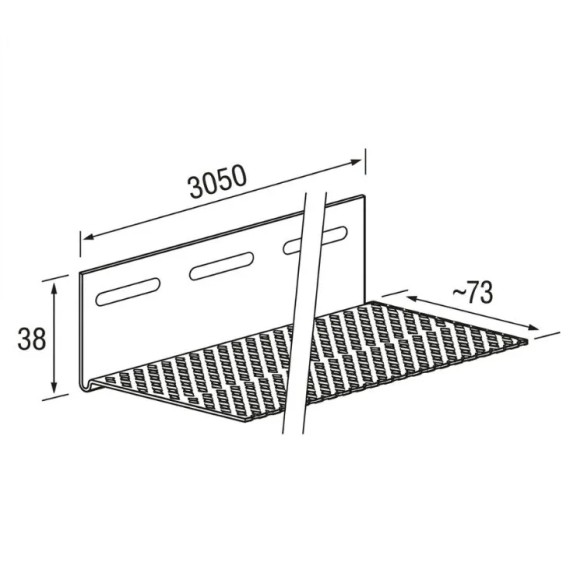

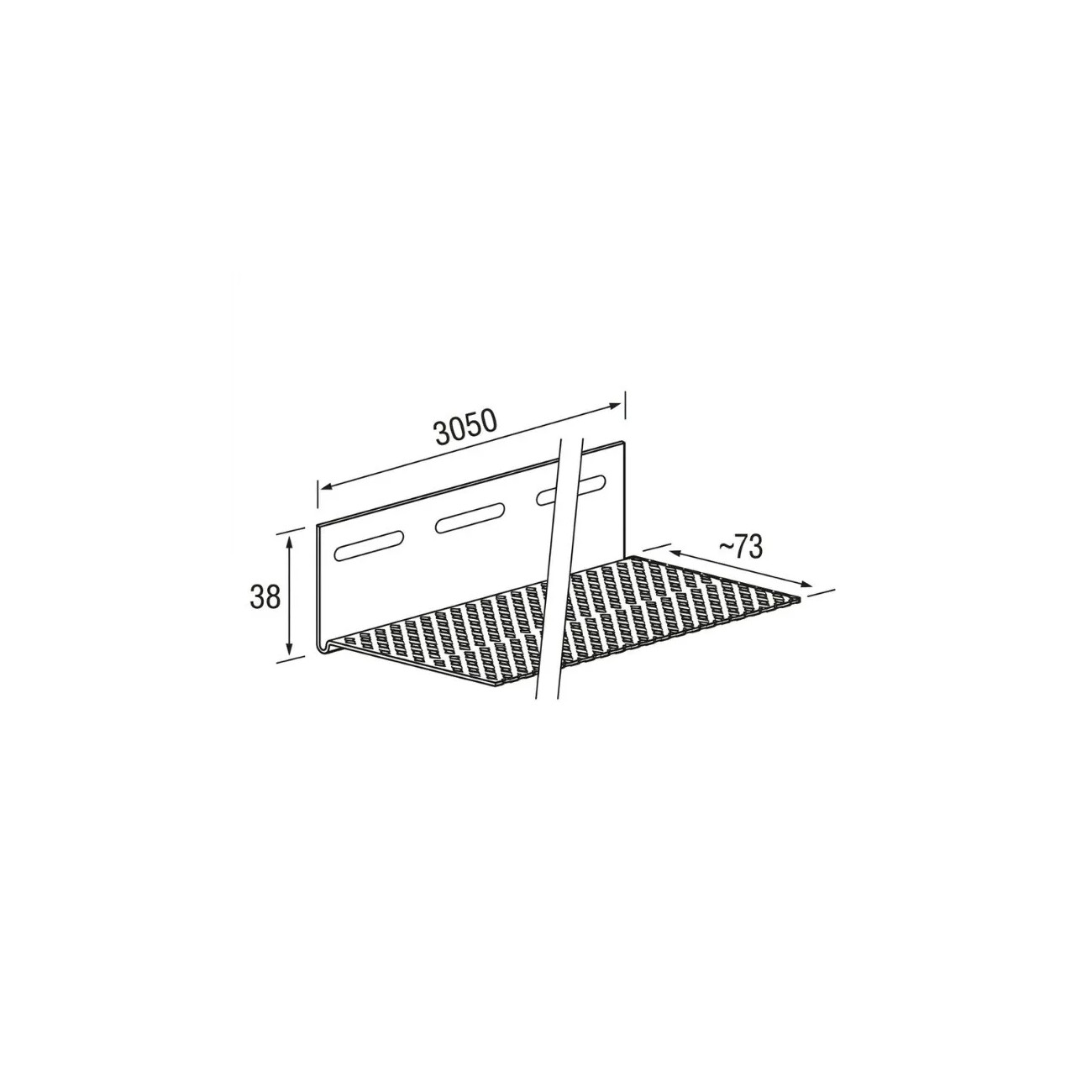

Measuring 3050mm in length with a visible width of 73mm, the trim provides generous coverage for most external wall installations. It integrates seamlessly with the VOX Fronto cladding system and is designed to be installed as part of the recommended vertical subframe construction.

For correct installation, vertically mounted VOX Fronto panels require intersecting battens to maintain adequate airflow behind the cladding system. Using the correct ventilation trim helps preserve this airflow while delivering a professional finished appearance.

Why Choose the VOX Fronto Bottom Ventilation Trim (M)?

• Designed specifically for vertically installed VOX Fronto cladding.
• Creates essential airflow beneath the cladding system.
• Provides a clean, professional finish at the base of the installation.
• Manufactured from durable, weather-resistant PVC.
• Measures 3050mm in length with a 73mm visible width.
• Works with intersecting batten systems used in vertical installations.
• Low-maintenance and resistant to outdoor conditions.
• Completes the VOX Fronto ventilation system for long-lasting performance.
